Cutting machine is our special machine for H beam build line, Plate cutting machine CNC40 is the perfect embodiment of the numerical control technology and precision machine,product types includes flame,plasma, single drive.double drive etc, we will select the sort of types , the sort of plasma devices , and the function of automatic lifting ,automatic ignition ,powder marking ,initial location ，automatic piercing according to the customer's requirement.
Plate cutting machine CNC40 (CNC machine) is used in petrochemical machinery, engineering machinery, wind power equipment, construction & bridge, shipbuilding, food & pharmaceutical and other industrie
Technical data of the Machine
Length of guided rails: 8000mm
Track width: 3000mm
Effective cutting scope: 6400mm
Cutting width of single torch:2400mm
Cutting speed：50-1000 mm/min ( stepless adjust )
Travel speed: 6000mm/min
Cutting thickness: 6~25mm
（apply in Plasma torch , PMX125 Pierce thickness can to25mm）
Cutting thickness: 25~100mm （when using 1 group of flame torches）

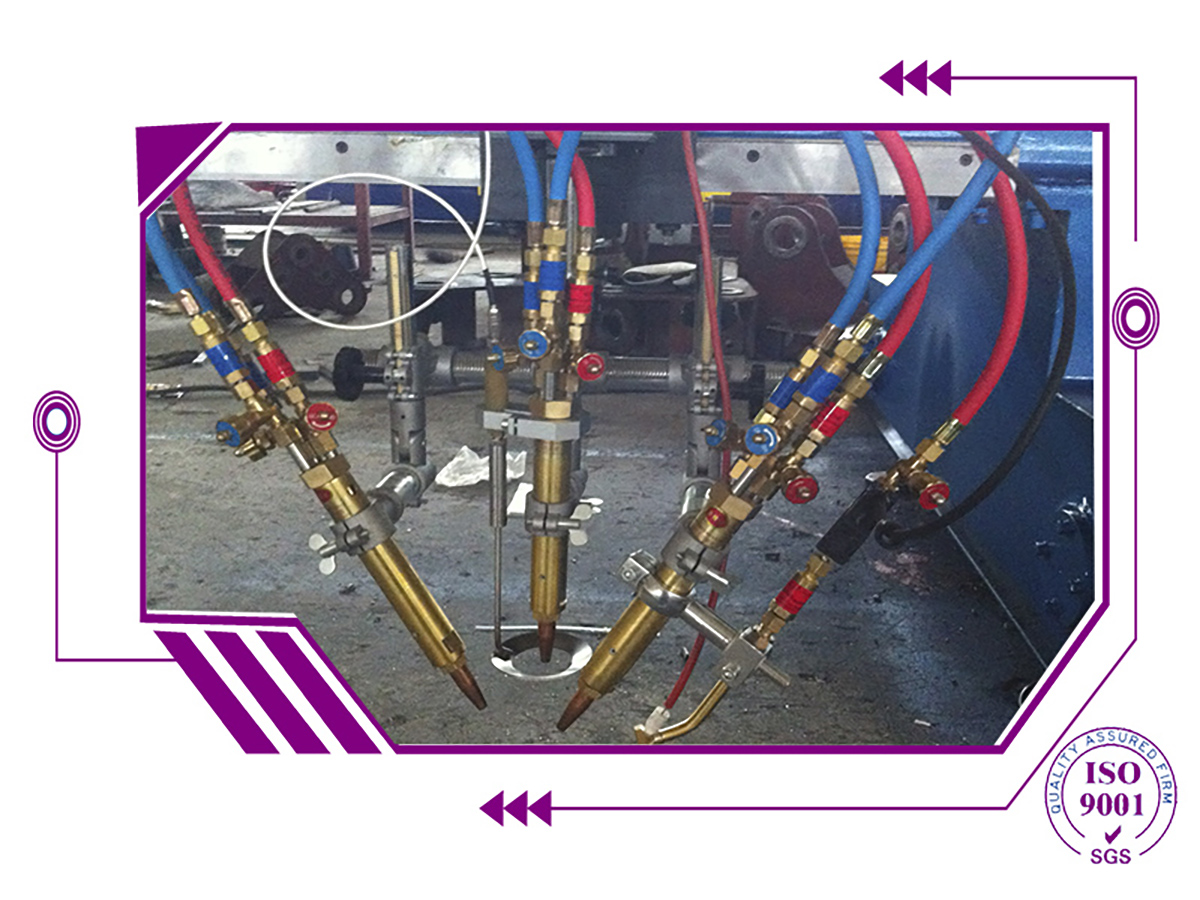

Transverse torch：1 CNC flame and with automatic ignition; 1 CNC plasma and with ARC Voltage THC
Longitudinal torch：NO .
Surface quality for cutting：≥Ra12.5
Precision of the whole machine: Suitable for JB/T 5102-1999
Air proofing of the whole machine: Suitable JB/T 5101
Precision of cutting position: ±0.5mm/1000mm
CNC controller: 1 set, CCM3
Cutting gas: Oxygen
Cutting material: Q235-A mild steel
Working condition: inside temperature 0-45℃, relativity humidity ≤90%
Input power: 1PH AC240V/3PH AC380V 50Hz ( user specify)
