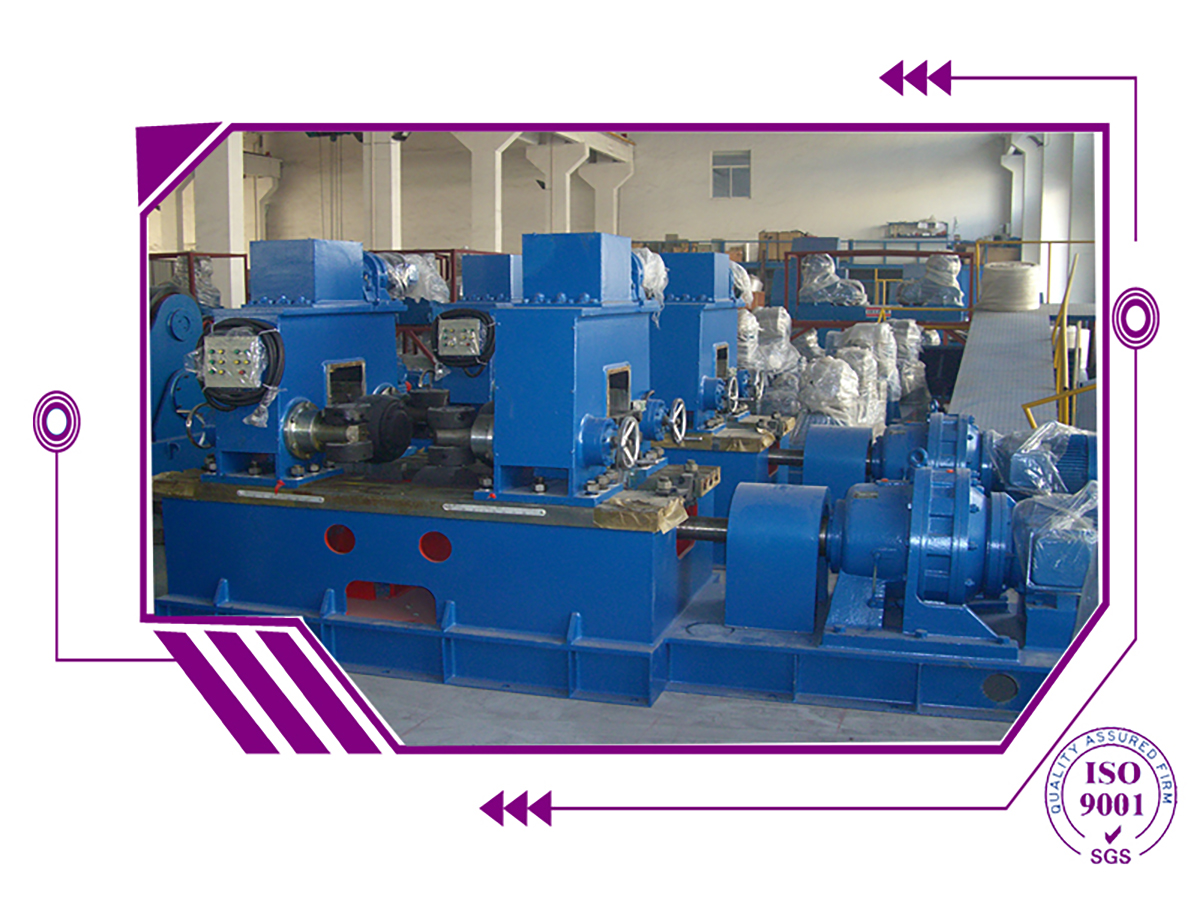

H beam welding machine HYJ800 also call straightening machine
1 Specification ：
The applicable size of the H-beam produced by the welding production line:
Height range of web: 200-1500 mm
Thickness range of web: 6-32 mm
Width range of flange: 150—800 mm
Thickness range of flange: 6—40mm
Length range of beam: 15000 mm
- Straightening machine and technical parameters
2.1.Performance and characteristic
Straightening machineis mainly composed of frame assembly, main transmission device, press down device, roller conveyer and electric controlling system. The frame adopts welding structure work piece and has been treated for removing stress with compact structure and beautiful exterior. The main driving device realizes transmission by motor through cycloid reducer drive main roller running. Press down device consists of motor—cycloid reducer---feed screw nut lifting—compression roller lifting. Roller conveyer is set on input and output terminals. Straightening compression roller and main transmission roller form a lever-style groove, when flange plates of the H-style steel goes through this groove under pressure of straightening compression roller, the flange plates will be over curved and deformed, and then recover to the required shape.
2.2. Technical parameters of straightening machine
Flange plate width 150-800mm
Flange plate thickness 6-40mm
Straightening speed ≈18000mm/min
Motor power: 24.2KW
When workpiece material is Q235-A, see follwing form(mm)
2.3.Range of supply
main body: base, left and right rack, motor, reducer, straightening wheel, pressing roller and guide roller
roller conveyer: 3.5M×4
electric controlling assembly: electrical control box, operation box and accessories
2.4.Technique documents of straightening machine
operation manual (electrical principle diagram and vulnerable parts)
qualification, packing list, foundation
2.5.Parts manufactured by users
foundation (diagram paper will be provided by seller)
foundation bolt and expansion bolt
H beam welding machine HYJ800 (H Beam machine) is used in petrochemical machinery, engineering machinery, wind power equipment, construction & bridge, shipbuilding, food & pharmaceutical and other industries
